This range of "no cable" antennas has been designed for boaties who want to remove and refit their antennas as required. These antennas have 3dBi gain. These antennas need to be mounted on our SeaMaster Pro range of mounts.

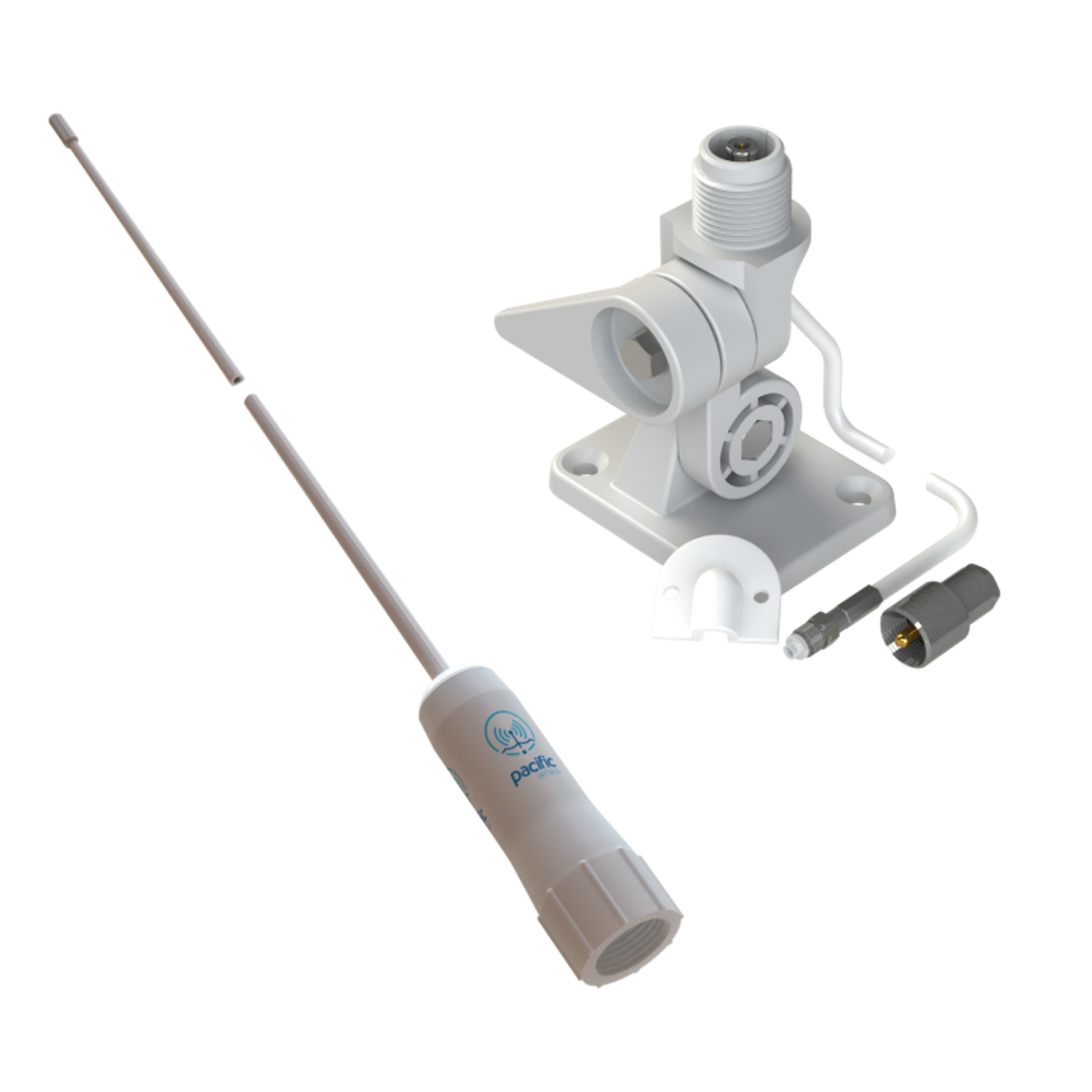

1.0m UltraGlass antenna. Half wave design, this is an economical option. It has a glass filled nylon ferrule. Mount on the P6111, P6113, or P6115 these mounts have 5m of cable and FastFit plugs.
Specifications
Frequency
VHF 156-162 MHz
Radome
Ultraglass
Ferrule
Nylon
Antenna Type
Half Wave
Gain
3dBi
"Marine Gain"
6dB
Typical VSWR at 156.8 MHz
1.2:1
DC Meter Reading
Open Circuit
Height
1.0m
P6111 - VHF FOLD DOWN MOUNT
Can be used for SeaMaster Pro Series VHF or cellular antennas. 5m of cable is wired into the mount.
Use in side or deck mount installations. Base plate dimensions: 81x63mm.
Specifications
Description
VHF SeaMaster pro fold down mount
Material
Glass filled nylon – UV inhibited
Weight / Height
375g/106mm
Base Plate Dimensions
81 x 63mm
Hole Centres / Sizes
61 x 43mm / Hole diameter – 7mm
Cable and Plug
5m RG58AU with FastFit Jack and Fastfit PL259 plug
