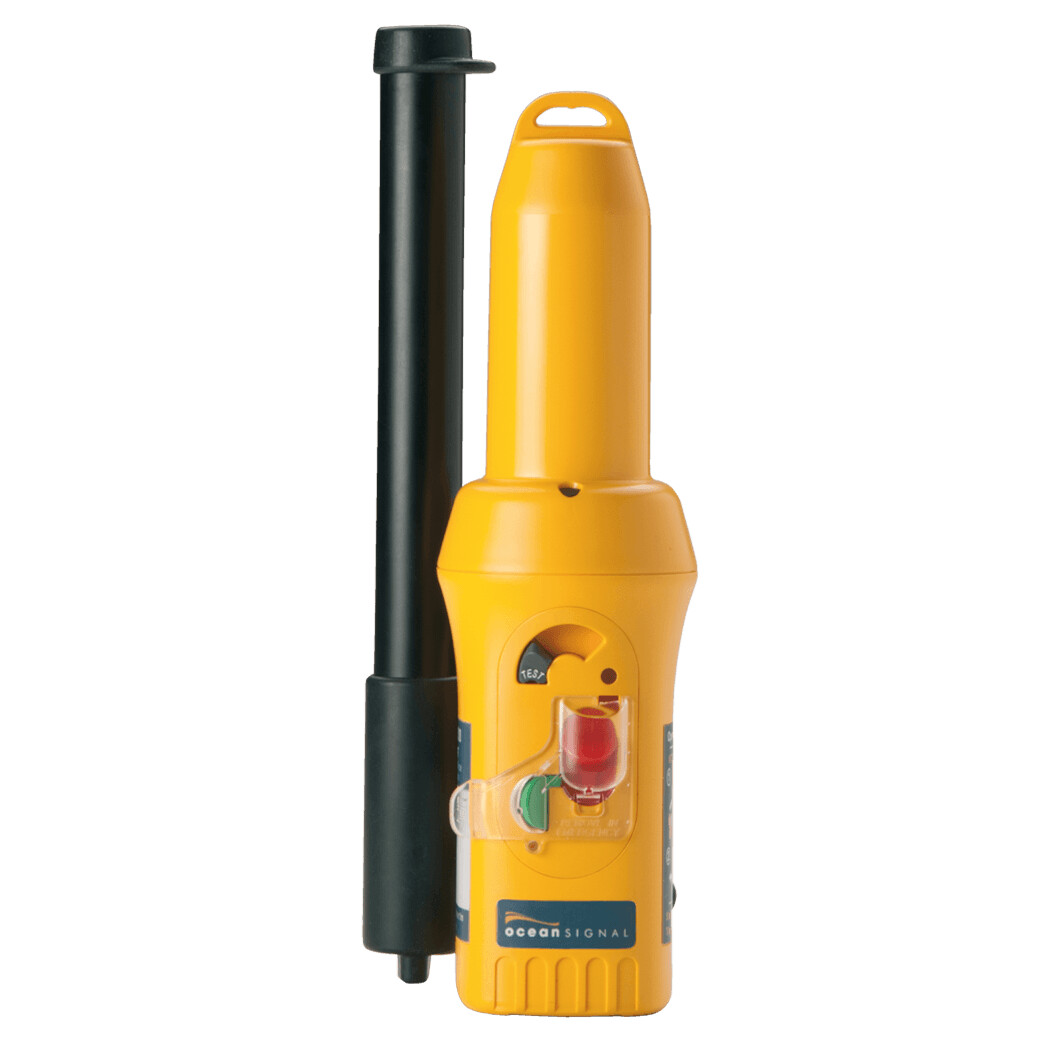

Ocean Signal S100 SART

R16,179.00
Email to order
Price incl. VAT (15%) R2,110.30
Product Details
Brand: Ocean Signal


The SafeSea S100 Search and Rescue Transponder (SART) is a dedicated radar transponder that complies with IMO SOLAS regulations.


  • Superior battery life – even at -20°C
  • User-replaceable battery
  • Non Hazardous battery
  • Five-year replacement interval
  • Compact size for easy liferaft packing
  • Supplied complete with telescopic pole and storage bracket


Carriage requirements

  • SARTs are required on all IMO SOLAS vessels on international voyages:-
    • One on 300-500GRT
    • Two if over 500GRT
    • One SART per every four liferafts on ro-ro passenger vessels
  • Nationally mandated vessels, including fishing vessels, passenger craft, commercial workboats, etc
  • Most Super and Mega yachts are required to carry a SART, especially if covered by the MCA code of practice, which is recognized by many countries.
  • Voluntary fit vessels will also benefit by carrying a SART


The SeaSafe S100 SART is designed to assist in the rescue and recovery of liferafts and survival craft. When switched on, the SART remains in a standby mode until automatically activated by an X Band Radar sweep from any vessel in the vicinity. The SafeSea S100 transmits a series of pulses which are displayed on the ship’s Radar as a line of dots, providing a bearing to the survival craft.


The activation controls are identical to those on theSafeSea E100 EPIRB, making use by unskilled operators much easier.



FREQUENTLY ASKED QUESTIONS

Why should I carry a SART?

A SART is designed to aid the rescue authorities locate you in emergency. Although it is not a primary alerting device, like an EPIRB, it will guide the rescue craft to you by displaying a position and bearing line on the rescue craft’s radar.


SPECIFICATIONS


General

Frequency range
9.2-9.5GHz
Radiated output power
>26dBm eirp


Battery Type Lithium Primary

Chemistry
Lithium/Iron Disulfide (Li/FeS2)
Operational Life
>96hours standby plus >12hours operational
Battery Replacement Interval
5years


Environmental

Operating Temperature Range
-20°C to +55°C
Storage Temperature Range
-30°C to +70°C
Waterproof
>10metres at +20°C


Dimensions

Height
227mm
Body Diameter (max)
65mm (82mm)

Standards and Approvals

IMO regulations
A.694(17); MSC.247(83)
International Standards Radio
IEC61097-1
International Standards EMC
IEC60945
European approval
Marine Equipment Directive A.1/4.18
USA Standards
FCC CFR47 part 80.1101
Ocean Signal S100 SART
