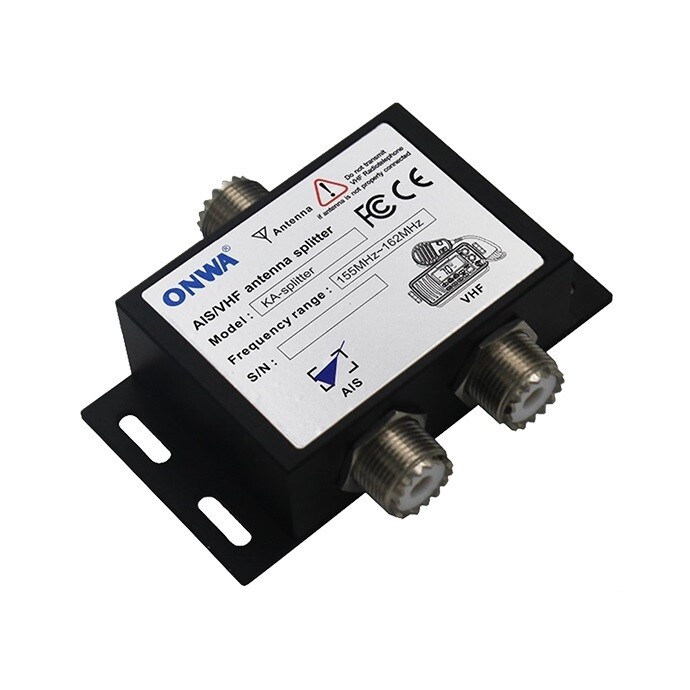

KA-splitter is an antenna splitter specially designed for sharing an antenna with an AIS transponder (transmitter and receiver) or an AIS receiver device and a VHF radiotelephone onboard. KA-splitter is a passive device so no power supply is needed.
Simple installation
No power supply is needed
High efficiency
Note: DO NO TRANSMIT VHF RADIOTELEPHONE IF ANTENNA IS NOT PROPERLY CONNECTED
Electrical Specifications
Frequency 150 ~ 170MHz
Split Loss (dB) 3.0
Insertion Loss (dB) ≤ 0.5
Isolation (dB) ≥ 20
VSWR @ all port ≤ 1.2
Average Power, max (W) 50
Impedance (ohm) 50
Mechanical Specifications
Dimension (L x W x H, in/mm) 2.95 x 3.74 x 1.06/75 x 95 x 27
