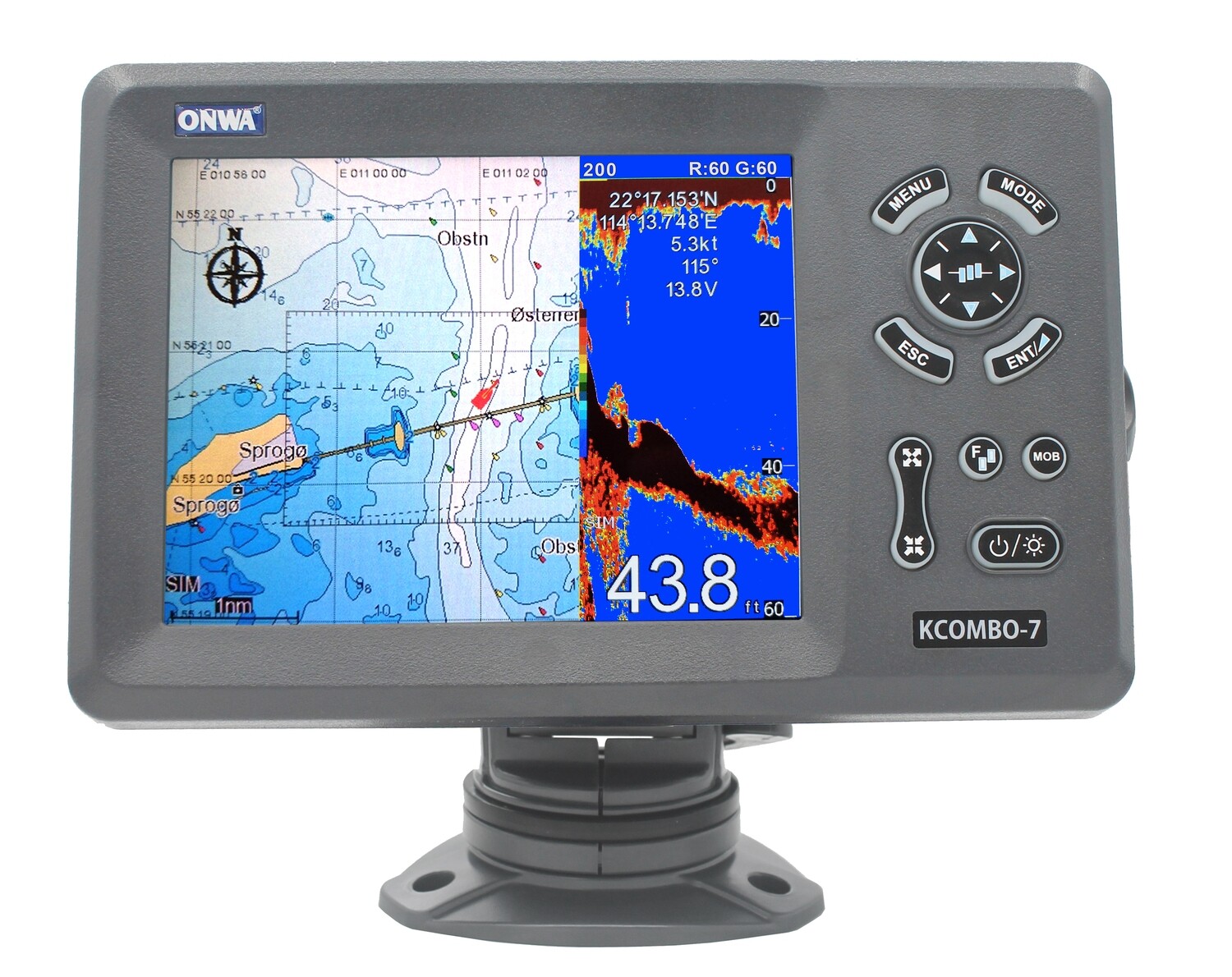

FEATURES - 7-inch high resolution LCD (800×600 pixels) - External GPS antenna included - Easy to use menu operation - Sunlight viewable - K-Chart mapping included - C-Map NT Max compatible - Digital fishfinder technology - 50/200 KHz transom mount transducer included - Speed, depth, water temperature and position - Ingress protected to IP67
Box Content:
Display unit External GPS Antenna Transom mount transducer Mounting bracket Power cable Manual
PLOTTER SPECIFICATIONS 1. WAYPOINTS/ICONS 12,000 user waypoints with name, symbol, 3 system waypoints: MOB, Start, cursor, 10 proximity waypoints 2. ROUTES 30 routes waypoint up to 170 points each, plus MOB and Track Navigation or Goto Track modes 3. TRACKS 8,000 point automatic track log; 10 saved track (up to 8000 track points each) let you retrace your path in both directions 4. ALARMS XTE, Anchor drag, arrival, speed, voltage, proximity waypoint and time, AIS alarm. 5. PALLETE Normal, Daylight exposed to sunlight, Night in dark environment, NOAA paperchart colours 6. TIDES Tide data 7. PROJECTION Mercator projection 8. POSITION FORMAT Lat/Lon 9. BASEMAP Built-in ONWA K-Chart 10. EXTERNAL MAP SD Cards slot for C-Map MAX 11. USER DATA STORAGE Internal backup of user settings, or external SD-card 12. PLOT INTERVAL 1s to HL or 0.01 nm to 9.99nm 13. PLOTTING SCALES 0.01nm to 1,000nm 15. PERSPECTIVE VIEW On/off 16. CELESTIAL Sunrise/Sunset Moonrise/Moonset
POWER SUPPLY (not included)
10.5 to 35VDC, current drain<1.0A at 12V
PHYSICAL
1. SIZE 243mm(H) X 155mm(W) X 82mm(D)
2. WEIGHT 0.6kg
3. DISPLAY 7 inches Colour TFT dayview LCD, 800×600 pixels
4. WATERPROOFING Display unit: IPX6, Antenna unit: IPX7
5. TEMPERATURE RANGE Display unit: -15℃ to +55℃ Antenna unit: -25℃ to +70℃
GPS RECEIVER CHARACTERISTICS
1. RECEIVER 50 parallel channel GPS receiver continuously Tracks and uses up to 50 satellites to compute and update your position
2. ACQUISITION TIMES Cold start: 27 seconds average, Warm start: 27 seconds average, Hot start: 1 second average
3. UPDATE RATE 1/second or 10/second (selectable), continuous
4. ACCURACY Position: 2.5 meters (95%) without S/A, Velocity: 0.1 Meter/sec without S/A, Time: ±100ns synchronized to GPS time
5. DYNAMICS Altitude: 50,000m Max, Velocity: 500 m/s, Acceleration: 4g Max
6. DATUM WGS 84 & Others
7. INTERFACES NMEA 0183 input and output, RS232 output
8. ANTENNA KA07
ECHO SOUNDER CHARACTERISTICS
1. ECHO COLOUR 8 colours (including background colour) according to echo intensity. The background colour is selectable from blue, light blue, white and black.
2. BASIC RANGE Meters 5/10/20/40/80/150/200/300/500/1000
Feet 30/60/120/250/500/1000/1600/3000
Fathoms 5/10/20/40/80/160/250/500
Passi/Braza 6/12/20/50/100/200/300/600
The basic ranges can be changed on the system menu.
3. RANGE SHIFT Up to 1000 meters (3000 feet, 500 fathoms, 600 passi/braza)
4. ZOOM RANGE Times 2,3,4 and 5 ranges
5. BOTTOM LOCK EXPANSION RANGE 5/10 meters, 10/20 feet, 2/5 fathoms, 2/5 passi/braza
6. AUTO MODE Automatic adjustment of range and gain
7. DISPLAY MODE High Frequency (200K), Low Frequency (50K), Dual (200K and 50K 1/2 display on each), Zoom (200K and 50K zoom) and A-scope Display
8. ZOOM DISPLAY Marker Zoom, Bottom Zoom and Bottom-lock Expansion
9. DISPLAY ADVANCE SPEED Lines/TX: Freeze, 1/8,1/4,1/2,1/1,2/1
10. TX FREQUENCY 50 and 200kHz (alternately transmitted)
11. POWER OUTPUT 600W
13. INTERFERENCE REJECTER Rejects unwanted signals by comparing last and present echoes in strength.
14. ALARM Fish and Bottom alarms, Temperature alarm (sensor required)
