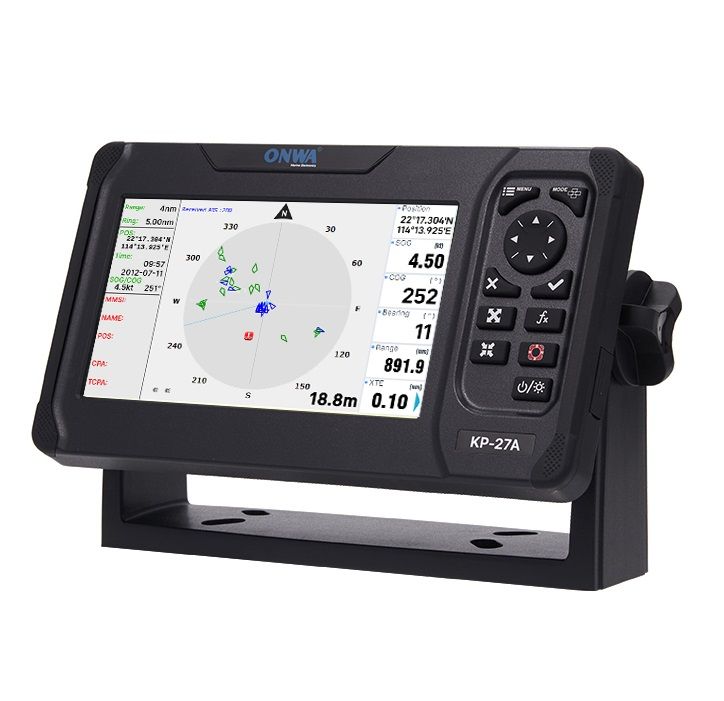

ONWA 7" GPS Chartplotter w/ Class B AIS Transponder - KP-27A

R9,199.00
Email to order
Price incl. VAT (15%) R1,199.87
Product Details
Brand: ONWA


Plotter Characteristics

Waypoints/icons
12,000 user waypoints with name, symbol,
3 system waypoints: MOB,Start,cursor
10 proximity waypoints
Routes
30 routes waypoint up to 170 points each,
plus MOB and Track Navigation or Goto Track modes
Tracks
16,000 points automatic track log;
10 saved tracks (up to 16,000 track points each)
lets you retrace your path in both directions
Alarms
XTE, Anchor drag, arrival, speed, voltage, proximity waypoint,
Timer and AIS (CPA and TCPA) alarm
Drawing
1000 Drawing Marks; 2000 Drawing Lines (40 points each);
1000 Drawing Place Name; 8 colors for Drawing
Pallete
Normal
Daylight exposed to sunlight
Night in dark environment
NOAA paperchart colors
Tides
Built-in Worldwide Tide Data
Position Format
Lat/Lon
Basemap
Worldwide
External Map
Compatible with K-Chart 2.0, K-Chart 3.0, C-Map Max and Navionics+
User Data Storage
Internal backup of user settings or external SD-card
Plot Interval
5secs to 60 mins or 0.01 to 10nm
Plotting Scales
0.001 to 700nm
AIS
700 targets display
AIS Target Tracking
10 Manually saved tracks (300 points each)
AIS Messaging
ONWA AIS to ONWA AIS
Perspective view
On/off (available for C-Map only)
Celestial
Sunrise/Sunset Moonrise/Moonset

GPS Receiver Characteristics

Receiver
50 parallel channel GNSS receiver continuously tracks and
uses up to 50 satellites to compute and update your position
Acquisition time
Cold start: 29 seconds
Hot start: 1 second
Update rate
1 second
Accuracy
Position:3 meters(95%) without S/A
Velocity: 0.1 meter/sec without S/A
SBAS
Supported
GNSS
GPS and Beidou
Dynamics
Altitude: 18,000 m
Velocity: 515 m/s
Datum
WGS 84 & user defined
Antenna
GPS Patch Antenna

GPS Interface (NMEA0183)

GPS Data
RS422 input/output, NMEA 0183 V3.01 and V4.11
GPS Input Baudrate
Auto Scan (4800, 9600, 19200 and 38400)
GPS Output Baudrate
Selectable among 4800, 9600, 19200 and 38400
AIS Output Baudrate
38,400

AIS Characteristics

Frequency Rate
156.025 MHz~162.025 MHz
Access Scheme
SOTDMA
Channel Bandwidth
25 KHz
Modulation
GMSK
Data Rate
9,600 bps
Number of AIS Transmitter
1
Number of AIS Receiver
2
AIS Channel 1
CH 87B (161.975 MHz)
AIS Channel 2
CH 88B (162.025 MHz)
Tx Power Output
>5 Watt (37 dBm ± 1.5 dB)
RX Sensitivity
>123dBm @ 20% PER
RX Message Format
AIS Class A and B messages
Comply Standard
IEC-62287 IEC 62287-2 Ed. 2.0:2017

NMEA0183 Sentence Supported

INPUT
(Auto scan Baudrate)
GGA, GLL, GSA, GSV, RMC, HDG, HDM, HDT
VTG, ZDA, MTW, VWR, VWT, MWD, VPW, VHW
TLL, TTM, VDO, VDM, GNS, MTA
RMA, DBT, DPT, MWV, BWC, XTE, ZDL, WPL, AAM,
APB, BOD, RMB, DSC, MDA, RPM, XDR
OUTPUT
Baudrate: Selectable 4800, 9600, 19200, 38400
GGA, GLL, RMC, GSA, GSV, AAM, APA
APB, BOD, BWC, BWR, DBT, DPT, HDT
MTW, RMB, TLL, VTG, WPL, XTE, ZDA
ZTG, ZDL, MWD, VPW, VWR, VWT
OUTPUT for Autopilot
APA, APB, BOD, XTE

Power Supply

10.5 to 34VDC, current drain <1.0A at 12V

PHYSICAL

Size
155.1mm(H)X241.3mm(W)X62.9mm(D)
Weight
1.3 kg
Display
7-inch Color TFT dayview LCD, 800×480 pixels
Waterproofing
Display unit (Front Panel): IP66
Antenna unit: IP66
Temperature range
Display unit: -15℃ to +55℃
Antenna unit: -25℃ to +70℃

Equipment List

Display unit
Quick manual
GPS Patch Antenna with 4m cable (SMA connector)
Mounting Brackets
Standard accessories pack
