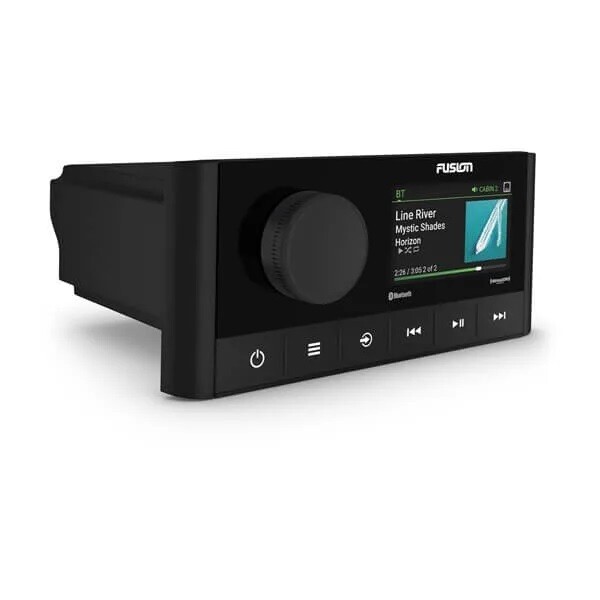

Fusion RA210 Marine Stereo
INDUSTRY BENCHMARK FOR MARINE ENTERTAINMENT
The MS-RA210 marine stereo from Fusion® is a stylish addition to your boat. Incorporating some of the Apollo™ Series’ key features, the stereo includes built-in digital signal processing (DSP) technology, modern design aesthetics and advanced source options.
Custom audio profiles for each zone on your boat deliver superior quality audio.
Enjoy the colour album art and metadata that display information of the current track playing.
Built-in Class-D amplifier delivers higher efficiency and greater output.
Multi-Zone™ Technology gives you control of two separate audio zones.
Control your music from a compatible multifunction display (MFD)1, smart device or Garmin watch.
IPX6 AND IPX7 INGRESS PROTECTION
Designed and engineered for the harsh marine environment, the MS-RA210 stereo has an IPX6- and IPX7-rated water-resistant front panel to perform and last on board.
MODERN DESIGN AND AESTHETICS
Providing uniformity across the helm, the black front face blends seamlessly into black glass panels, complementing other electronics and MFDs for a tidy and elegant installation.
FUSION DIGITAL SIGNAL PROCESSING (DSP)
A technically superior listening experience made simple, Fusion DSP optimises the audio signal delivered to your Fusion system to produce superior sound quality at all volume levels, in every listening environment.
EASY-TO-INSTALL DSP PROFILES
Setting up your DSP profiles is made simple with the free Fusion-Link™ app2. With just a few steps on your compatible smartphone, you can set up the preconfigured DSP profiles once and enjoy listening to high-quality audio customised for your ears and the environment.
Enjoy more audio source options than ever before.
FREEDOM OF CHOICE TO LISTEN TO WHAT YOU WANT
Take advantage of the many source options available, including Bluetooth® technology, DAB+ radio, AM/FM radio, AUX and USB connections.
Enjoy entertainment control with the Fusion-Link™ App.
LEARN MORE
Control your audio directly from an MFD with Fusion-Link wired technology.
PART NUMBER 010-02250-00
| Physical dimensions (H x W x D) | 2.68" x 6.18" x 4.99" (68 x 157 x 126.6 mm) |
| Weight | 12.4 oz (350 g) |
| Water rating | IPX6 and IPX7 (Front panel only, when properly installed) |
| Power input | 10.8-16 VDC |
| Operating temperature range | 32° to 122° F (0° to 50° C) |
| Current (max.) | 15 A |
| NMEA 2000® LEN | 1 (50 mA) |
| BLUETOOTH® wireless range | Up to 30 ft (10 m) |
| ANT wireless range | Up to 10 ft (3 m) |
| Wireless frequencies/protocols | BLUETOOTH 2.4 GHz @ +12 dBm nominal ANT 2.4 GHz @ +7 dBm nominal |
| Compass-safe distance | 5.9" (150 mm) |
Stereo Features |
|
| Display | 2.7" optically bonded color LCD |
| Built-in amplifier | Class-D (minimum 4 Ohm impedance) |
| Peak power | 200 W |
| Rated power output (4 Ohm) | 26 W rms x 4 @ 14.4 V input < 10% THD |
| Built-in Digital Signal Processing | yes (with preconfigured DSP profiles) |
| Fusion-Link™ control | yes (with MFD, smartphone and Garmin watch) |
| Multi-Zone™ technology | 2 zones |
| BLUETOOTH wireless technology | yes |
| ANT wireless technology | yes |
| SiriusXM-ready | yes (requires SiriusXM Connect vehicle tuner) |
| DAB+ ready | yes (requires DAB100A antenna module) |
| NRX remote compatibility | yes |
| Multi-language interface | Bulgarian, Chinese (Simplified/Traditional), Croatian, Czech Danish, Dutch, English, Finnish, French, German, Greek Italian, Japanese, Korean, Norwegian, Polish, Portuguese (BR/PT), Slovenian, Spanish, Swedish, Thai, Turkish |
| Software updates | USB |
| Warranty | 1 year |
Sources |
|
| Sources | AM / FM / Bluetooth / USB audio / iPhone / iPod / AUX x1 / MTP / SiriusXM-Ready (USA only, requires optional SiriusXM Connect vehicle tuner) / DAB+ ready (available in Europe and Australia only) |
Connectivity |
|
| Auxiliary input | One RCA input (AUX) |
| NMEA 2000 | One NMEA 2000 port |
| USB 2.0 | One USB 2.0 port |
| SiriusXM satellite radio | One SiriusXM port (requires SiriusXM Connect vehicle tuner, does not support traffic and weather) |
| AM/FM radio | One Motorola antenna connector port |
| Speaker | 4 speaker connections (2 zone amplified) |
| RCA pre-out (left, right and subwoofer) | 2 zones (requires external amplification) |
| Line out | Zone 1, Zone 2 (L + R, requires external amplification) |
| Subwoofer out | Zone 1, Zone 2 (requires external amplification) |
